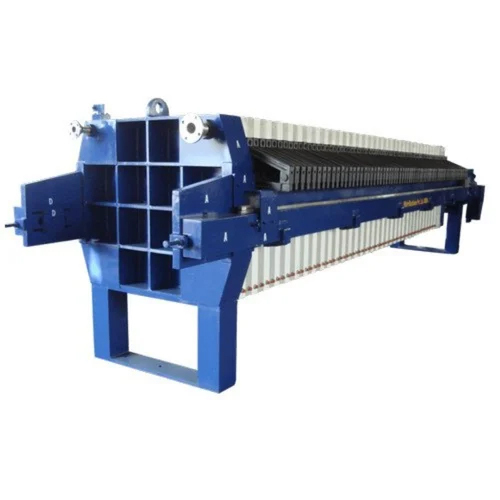

Industrial Filter Press

Name: Industrial Filter Press
Brand: NEERAVI AQUA AND FIRE SOLUTIONS
Price: 21500 INR
Availability: InStock

Price 21500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Industrial Filter Press Specification

Product Type
Industrial Filter Press

General Use
Solid-Liquid Separation in Industrial Processes

Material
Mild Steel

Type
Plate and Frame / Chamber Type

Capacity
Up to 1000 LPH (customizable)

Weight (kg)
4500 kg (approx)

Computerized
No

Automatic
Semi-Automatic / Automatic options available

Ozone Generator
Not Included

UV Sterilizer
Not Included

Control System
PLC Based Control Panel (optional)

Filter Bag No.
24 Plates (customizable up to >50 plates)

Filter Area
25 m (can be customized)

Flow Rate
Up to 1000 LPH

Voltage
415 V

Motor
3 HP / 5 HP (as per model)

Dimension (L*W*H)
3200 x 1200 x 1500 mm (approx)

Feature
Corrosion Resistant, Heavy Duty Structure, High Dewatering Efficiency

Color
Blue / Custom Paint Options

Installation Service
Available on Request

Hydraulic System
Manual / Hydraulic Cylinder Closing

Filtration Cycle Time
20-45 minutes (depending on feed)

Cake Thickness
30 mm (standard); customizable

Slurry Inlet Connection
2" / 3" Flanged

Application
Effluent Treatment Plants, Chemical, Pharmaceutical, Food & Beverage

Plate Material
Reinforced Polypropylene / Cast Iron

Feed Pump
Centrifugal / Screw Pump (optional integration)

Max Operating Pressure
6-16 bar

Discharge Type
Manual / Automatic Cake Discharge

Working Temperature
Up to 120°C

Safety Features
Overload Protection, Emergency Stop, Limit Switch on Movable Head

Industrial Filter Press Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
20 Pieces Per Month

Delivery Time
1 Week

Main Domestic Market
All India

About Industrial Filter Press

Being a remarkable enterprises in this domain, we are occupied in manufacturing and supplying Industrial Filter Press. This press is widely used for wastewater treatment applications to separate liquids and solids. The provided press is manufactured using quality checked components with the aid of avant-garde techniques in tune with industrial quality norms. Furthermore, the offered Industrial Filter Press can be purchased from us in various specifications at market leading prices.

Features:

High filtration rate
Easy installation
Robust structure
Less maintenance

High Efficiency and Versatility

Engineered for superior dewatering efficiency, the filter press accommodates a range of operational requirements. With customizable cake thickness, filter area, and plate material, it fits seamlessly into effluent treatment, chemical, pharmaceutical, and food processing lines. The combination of a sturdy structure and corrosion resistance ensures long-lasting performance.

Reliable and Customizable Operation

This filter press is designed with user flexibility in mind. Choose from manual or hydraulic closing systems, integrate centrifugal or screw pumps as needed, and opt for manual or automatic cake discharge based on your workflow. Safety is prioritized with overload protection, emergency stop, and limit switches.

Comprehensive Installation and Support

Installation services are available upon request, providing turnkey solutions for your setup. The press operates on a standard 415 V supply and features a PLC-based control panel for semi-automatic or automatic operation. As a leading exporter, manufacturer, and supplier in India, we offer post-purchase support and customizations tailored to your process requirements.

FAQs of Industrial Filter Press:

Q: How does the industrial filter press operate for solid-liquid separation?

A: The filter press works by pumping slurry into a series of filter plates, where solids are trapped and form a cake, while filtered liquid exits the system. The process is driven by a hydraulic or manual closing system and can utilize either centrifugal or screw feed pumps to suit different material properties.

Q: What safety features are included in this filter press model?

A: Safety is ensured through integrated overload protection, an emergency stop mechanism, and a limit switch on the movable head. These features help prevent accidents and protect both the equipment and operator during operation.

Q: When is it recommended to use manual versus automatic cake discharge?

A: Manual cake discharge is suitable for lower-volume or intermittent operations, while automatic cake discharge is preferable for continuous, high-capacity processing, reducing manual intervention and increasing throughput.

Q: Where can the filter press be installed, and is assistance provided?

A: The filter press can be installed in a range of industrial facilities such as effluent treatment plants, chemical, pharmaceutical, and food & beverage plants. Installation services are available upon request to ensure proper setup and integration.

Q: What are the advantages of reinforced polypropylene or cast iron plate materials?

A: Reinforced polypropylene plates are lightweight, corrosion-resistant, and ideal for chemical or food applications, while cast iron plates offer enhanced durability and are well-suited for handling abrasive or high-temperature slurries.

Q: Can the filtration cycle time and capacity be customized for specific requirements?

A: Yes, the filtration cycle time (typically 20-45 minutes) and overall capacity (up to 1000 LPH) can be tailored through variable feed rates, customizable cake thickness, plate count, and filter area to meet specific process needs.

Q: What are the primary benefits of using this filter press in industrial processes?

A: Key benefits include high dewatering efficiency, reliable and customizable operation, robust corrosion-resistant structure, safety features, and the ability to support diverse industrial applications with minimal maintenance requirements.
