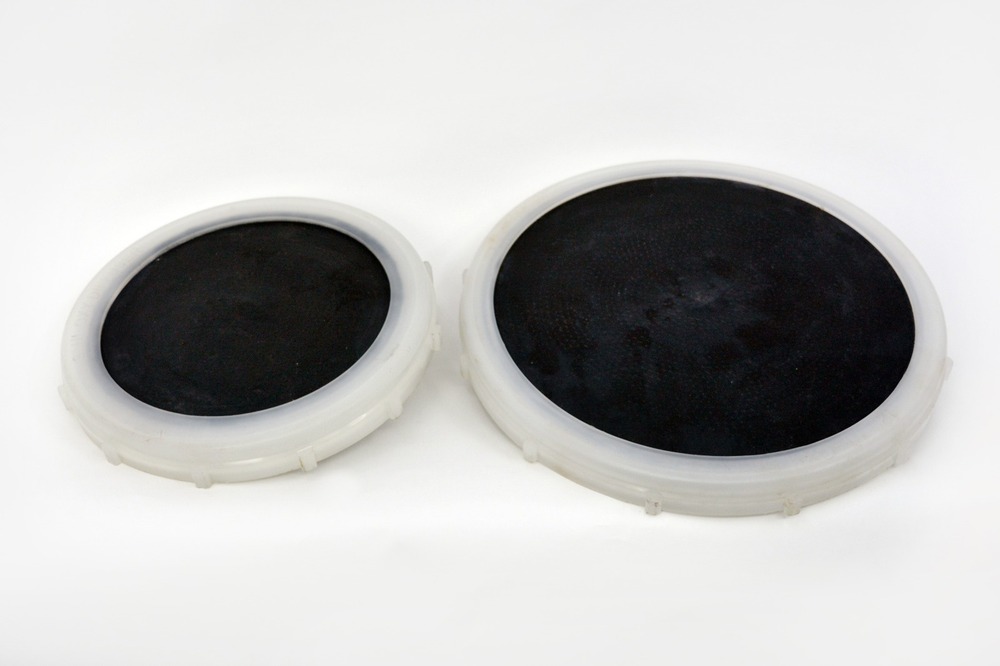

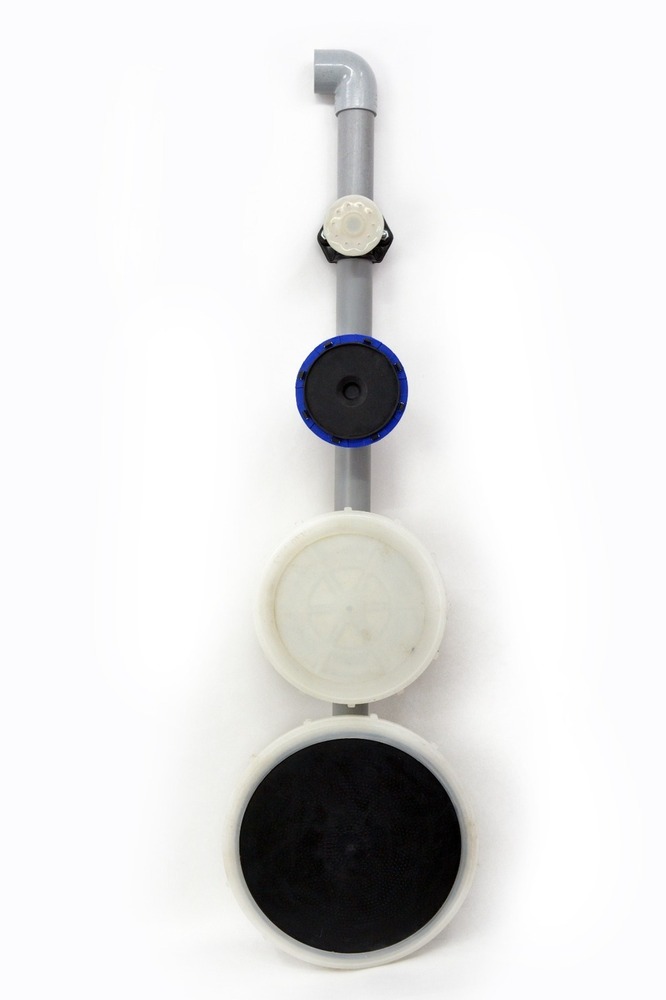

Disc type diffuser

Name: Disc type diffuser
Brand: NEERAVI AQUA AND FIRE SOLUTIONS
Price: 600 INR
Availability: InStock

Price 600 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Disc type diffuser Specification

Application Media
Wastewater, Sewage, Aeration tanks, Water treatment plants

Input
Compressed air supply

Capacity
Handles air flow from 1 to 8 m3/hr

Flow Rate
1-8 m3/hr per unit

Dimension (L*W*H)
9 inch and 12 inch round

Protection
Corrosion resistant

Housing Material
Polypropylene

Equipment Type
Fine Bubble Air Diffuser

Storage Temperature
-20C to 50C

Pressure Range
Maximum 1.0 bar operating

Process Connection
G3/4 BSP Threaded/ Custom fitting

Color
Black membrane with white base

Model
Disc type diffuser

Diameter
Available in 9 inch (225 mm) and 12 inch (300 mm)

Connector
Threaded or clamped connection

Stability
High chemical and mechanical stability

Output
Oxygen transfer via fine bubble diffusion

Response Time
Instantaneous on air supply

Operating Temperature
0C to 80C

Mounting
Threaded/ Clamp connection

Temperature Range
0C to 80C

Connecting Type
Male threaded connection / saddle connection

Material
EPDM/ Silicon Membrane with Polypropylene Base

Maintenance
Low, membrane replaceable

Air Bubble Type
Fine bubble aeration

Bubble Size
1-2 mm (fine bubble)

Recommended Applications
Municipal and industrial wastewater treatment

Membrane Thickness
2 mm

Oxygen Transfer Efficiency
Up to 40% (depends on application)

Installation Method
Submerged installation

Service Life
5-8 years (typical)

pH Resistance
4-10

About Disc type diffuser

Discover our eminent Disc Type Diffuser, now featured in our limited time Clearance sale, perfect for municipal and industrial wastewater applications. Fitted with a laureate-grade EPDM or silicone membrane, these redoubtable diffusers offer fine bubble aeration with oxygen transfer efficiency up to 40%. Suitable for submerged installation, they boast high chemical and mechanical stability, corrosion resistance, and a replaceable 2mm thick membrane. With an impressive service life of 5-8 years, instant response time, and compatibility with varied threaded or clamped connections, this product exemplifies outstanding value for wastewater professionals across India.

Optimized for Wastewater Applications

The Disc type diffuser is highly suitable for municipal and industrial wastewater treatment, aeration tanks, and water treatment plants. Its fine bubble output enhances oxygen transfer across application surfaces, ensuring consistent performance on sewage and water treatment media. Plants benefit from its robust chemical and mechanical stability, corrosion-resistant construction, and reliability in submerged installations. This makes it ideal for continuous plant operation over a wide range of temperatures and challenging wastewater environments.

Sample Availability and Seamless Supply

Quick dispatch is assured with sample availability for testing in domestic markets. Buyers can enjoy flexible payment terms, and the eminent exporter and supplier network ensures consistent supply ability. A modest sample charge applies, reflecting the quality product offered. With prompt order fulfillment and excellent after-sales support, Disc type diffusers can be conveniently acquired by manufacturers, wholesalers, traders, and suppliers across multiple regions, guaranteeing satisfaction with every transaction.

FAQ's of Disc type diffuser:

Q: How is the Disc type diffuser installed in water treatment plants?

A: The Disc type diffuser is designed for submerged installation. It can be mounted using threaded or clamped connections, and supports both male threaded (G3/4 BSP) and saddle fittings, ensuring versatility across plant setups.

Q: What are the main benefits of using a fine bubble air diffuser in wastewater treatment?

A: Fine bubble air diffusers deliver superior oxygen transfer efficiency, up to 40% depending on application, enhancing aerobic biological processes and reducing operational costs. Their fine bubbles (1-2 mm) optimize aeration and help achieve uniform coverage.

Q: When should the membrane of the Disc type diffuser be replaced?

A: The typical service life of the membrane is 5 to 8 years under normal operating conditions. Replacement is recommended if there's a decline in aeration efficiency or visible wear and tear on the membrane.

Q: Where can these diffusers be applied aside from municipal treatment plants?

A: These disc diffusers are ideal for use in industrial wastewater treatment, aeration tanks, sewage plants, and various water treatment facilities across diverse applications in both domestic and commercial sectors.

Q: What maintenance is required for the Disc type diffuser?

A: These diffusers require minimal maintenance. The primary task involves periodic inspection and, if necessary, membrane replacement, which is straightforward due to its replaceable design.

Q: How quickly does the diffuser respond to changes in air supply?

A: The Disc type diffuser exhibits instantaneous response when air is supplied, ensuring rapid start-up and immediate aeration efficiency in operational settings.
